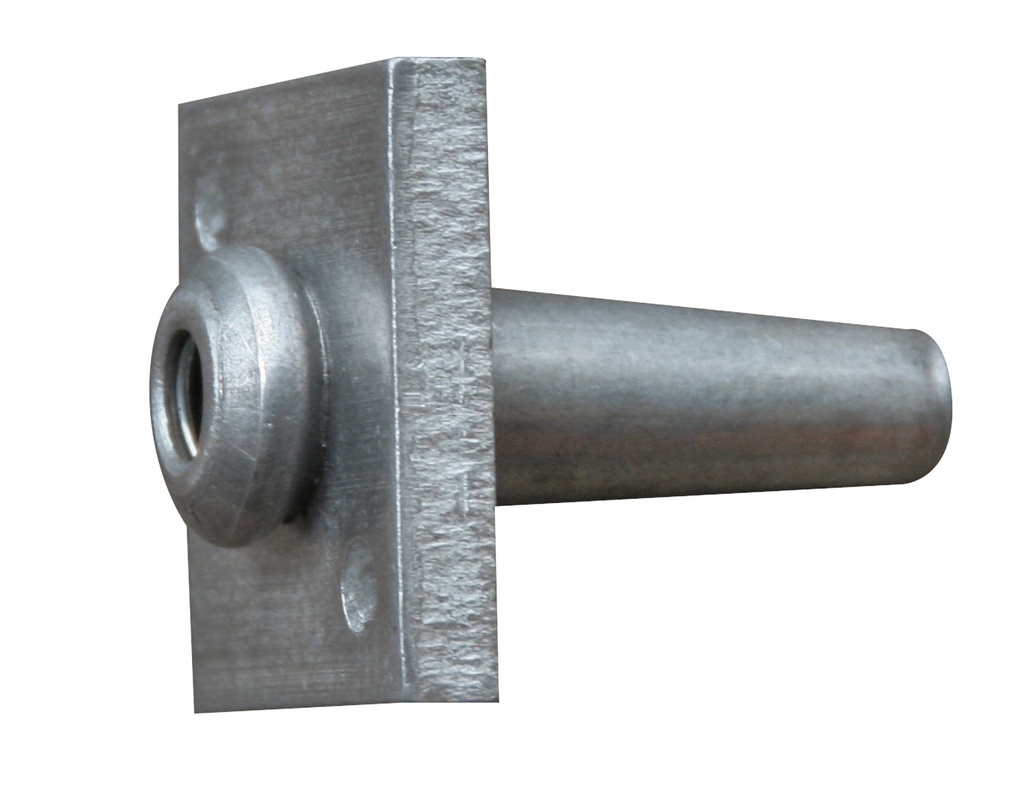

Quick End

The Quick End provides a fast and efficient way to terminate wire at end posts, ensuring a secure and reliable hold for fencing and trellising applications. Its spring-loaded embossed teeth grip the wire firmly, preventing it from pulling out.

Key Features:

• Works with 8-11 gauge smooth wire.
• Designed for fence and trellis wire termination.
• Allows wire to pass only in one direction for a secure grip.
• Quick and easy installation—no special tools required.
• Square flange sits flush against the post for a clean finish.

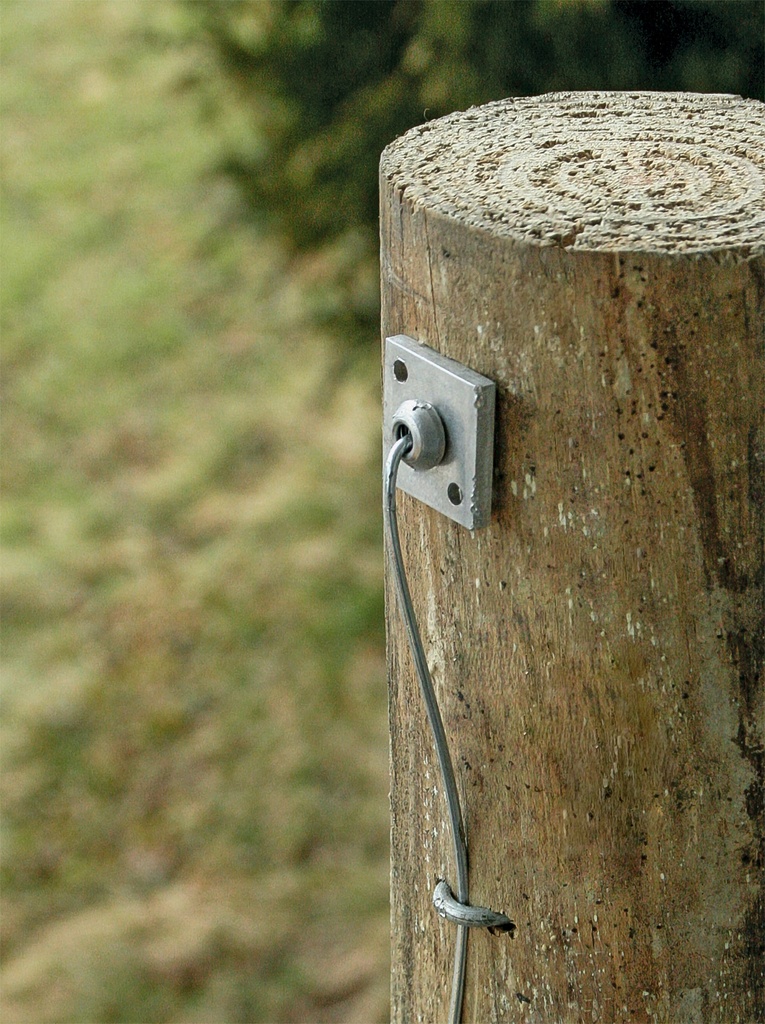

Installation Steps:

1. Drill a 5/8" hole through the end post.
2. Push the wire through the hole, extending at least 6" past the post.
3. Slide the Quick End onto the wire (small end first) until it enters the hole and the flange sits flat.
4. For wire tensioning, use a Gripple torque tool:
   • Basic: TGTTP
   • Heavy Duty: TGTCC
   • Contractor: TGTC
5. Cut excess wire, leaving a 6" tail, bend it downward, and secure it with a staple.

For future adjustments, remove the staple and pull the wire to re-tension as needed.

Available Options:

• 12-13 gauge: CWV1213
• 10-11 gauge: CWV1011
